Buick Apple CarPlay for Regal Lacorsse Verano Envison Malibu XL Equinox Wireless Android Auto Add Reverse Camera
Buick Apple CarPlay for Regal Lacorsse Verano Envison Malibu XL Equinox Wireless Android Auto Add Reverse Camera
Couldn't load pickup availability
SPECIFICATIONS
Origin: Mainland China
Hign-concerned Chemical: None
Before you buy:
1.Please confirm this device fits your car, if you are unsure,please send me a picture of car screen menu. Avoid Trouble.
2.This device does NOT support Mirror function and Google Voice Assistant (in Android auto). If you mind, please don't buy it.
Buick Apple CarPlay Kit can fit:
Lacrosse 8'' 2013-2019|Envision8'' 2014-2019|Regal 8'' 2013-2017|Verano8'' 2015-2019
Malibu XL8'' 2016-2019|Equinox8'' 2017-2019
Features of our Buick Apple CarPlay Kit:
– Support wired or wireless connection of CarPlay or Android auto
– Support original bluetooth audio
– Supports original screen touch,original knob
– Support aftermarket front camera

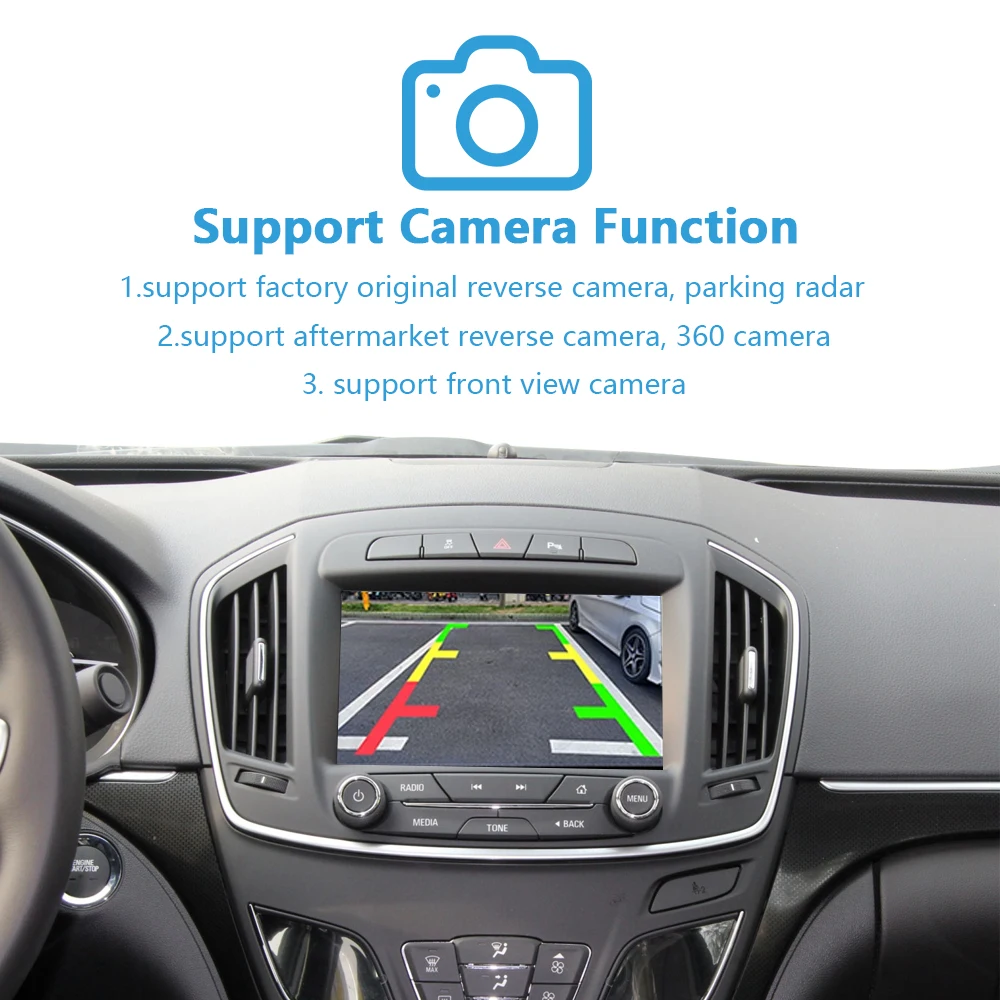

– Support factory reverse camera and after market reverse camera
– Support Steering wheel control CarPlay/Android auto
– Plug and play,no need any coding

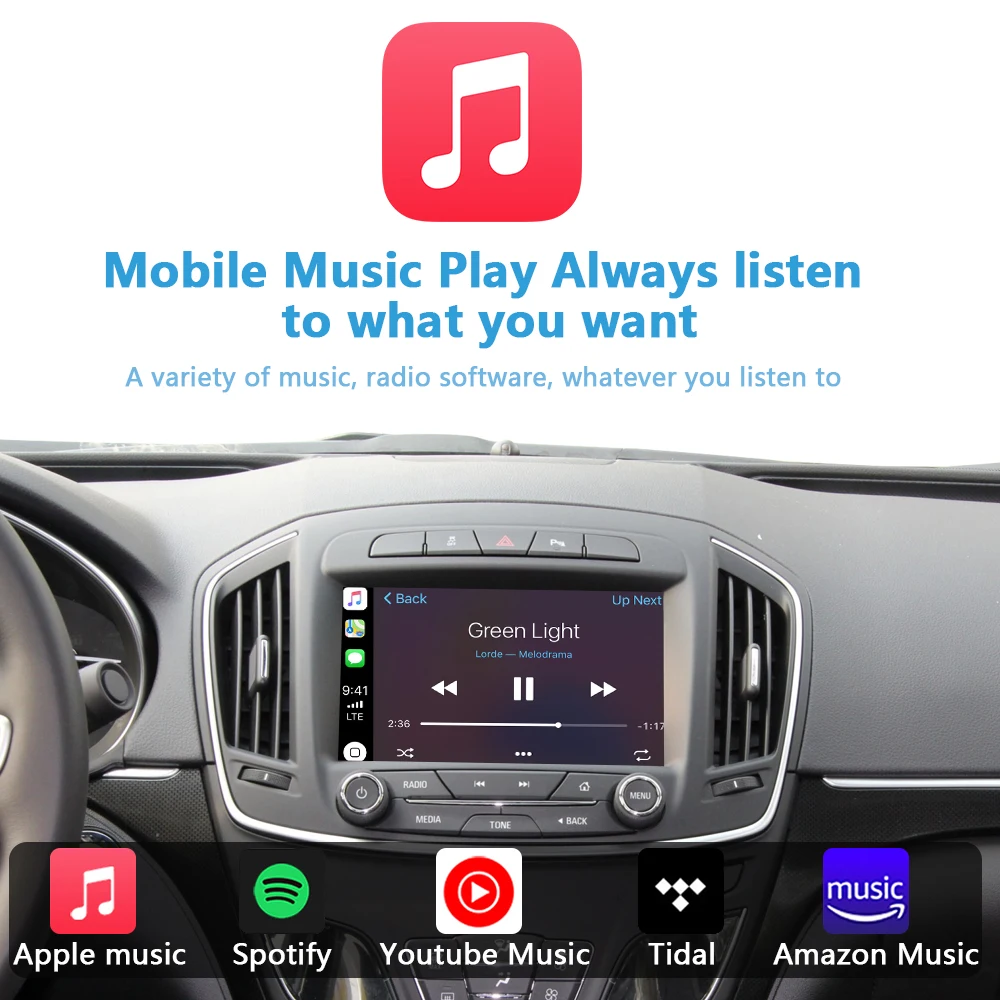

– Support On-line map, Spotify, Phone,Messages, Podcasts...
– Support 5.0GHZ and 2.4GHZ Wifi

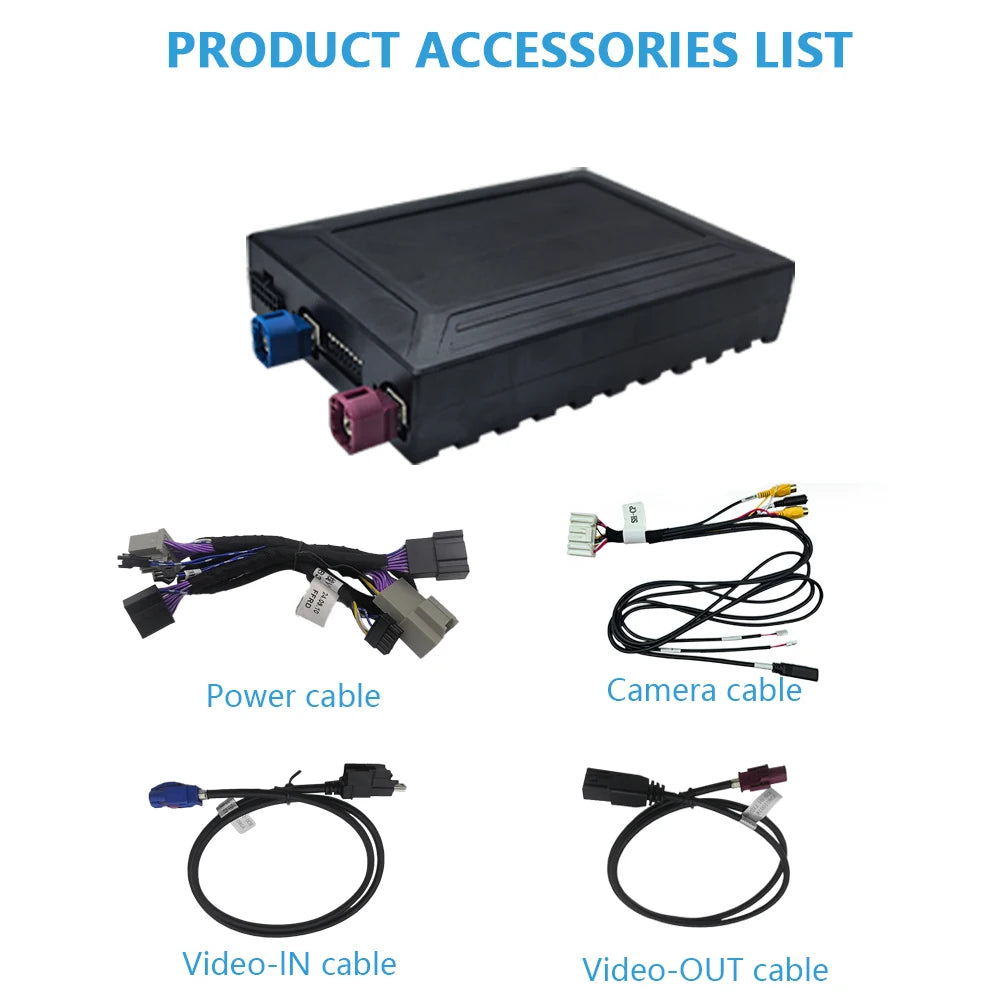

Built in Accessories of Buick Apple CarPlay kit:
– Wireless CarPlay module
– Power harness
– LVDS IN video cable
– LVDS OUT video cable
– Camera/USB cable
– Wifi Antenna(built in)
– Installation manual
High quality connection of Buick Apple CarPlay Kit:
– Built-in 5GHz WiFi: Compared with 2.4G WiFi, it has more than three times the transmission speed, making the carplay connection more stable.
– Bluetooth 5.0: longer transmission distance, stronger compatibility and better experience.
Specification | |
Chip |
SPHE8368-U |
Main Frequency |
800MHz |
RAM |
1 Gb / 128MB |
ROM |
1 Gb / 128MB |
OS |
Linux Gemini |
Support Audio Format |
MP3,WMA,AAC,FLAC,WAV |
Support Video Format |
AVI,MKV,MP4,FLV,MPEG,H.264 |
Dimension |
60mm*39mm*6mm |
Working Environment temperature |
-40°C~+85°C |
Storage Environment temperature |
-40°C~+100°C |
Storage Temperature |
30%~90% |
Working Humidity |
45%~80% |
Working Height |
Device can work normally under 15000feet(4573 meter)height |
Drop Test |
Device can work normally after dropping under 30inches(76cm)height |
Rating voltage |
5V |
Normal Working voltage |
DC 5V(±0.3V) |
Standby current |
≦1mA |
Video output |
CVBS/RGB888/LVDS |
Video output voltage |
1.0Vpp/75Ω |
Audio output |
Two -channel CD stereophonic sound, can extend |
Audio watt |
Two channel 0.25W/CHANEL |
Voice input |
MIC analog signal |
Communication serial port |
1 group UART port |
Touch way |
IIC/serial communication |
General IO |
Multiplex IO ,meet different customer demand |
USB port |
1 group |
Bluetooth+WIFI Module | |
Bluetooth | |
Bluetooth Standard |
Bluetooth V5.0+EDR |
Frequency Band |
2402MHz-2480MHz |
Interface |
UART |
Size |
12*15mm |
Vcc |
3.3V |
ANT |
External antenna interface |
WIFI | |
Frequency Band |
2.4GHz&5.8GHz |
Interface |
USB |
Size |
12*13mm |
Vcc |
3.3V |
ANT |
External antenna interface |
